SRPA Edgelit Lay In
SRPA_1K.Selector.jpgSRPA Edgelit Lay In
Slot Recessed Selectable Panel

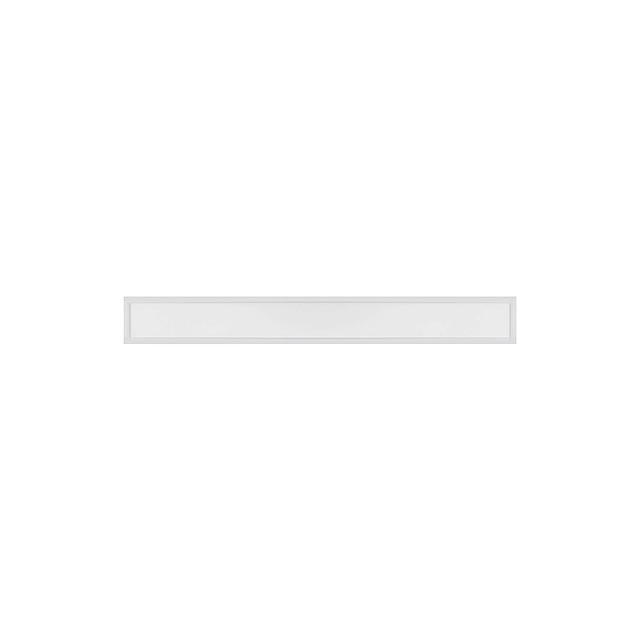

The SRPA Edgelit Lay In is a low-profile, edgelit LED luminaire with a durable aluminum frame. Its frosted PMMA lens provides uniform illumination, and its long-life, high-efficacy LEDs deliver over 70% lumen maintenance at 100,000 hours. The luminaire is dimmable, IC-rated for Damp locations, and UL-listed. A 5-year warranty is included.
Resources
CONSTRUCTION
Low profile extruded aluminum frame, multiple wiring entrances on driver enclosure for easy access. Suitable for installation into T-grid ceilings.
OPTICS
Backlit design provides exceptional lighting distribution. Frosted PMMA lens offers edge to edge illumination without pixilation or bright spots.
ELECTRICAL
Long-life, high-efficacy, micro-power LEDs, illumination for extended service life. Greater than 70% LED lumen maintenance at 100,000 hours (L70>100,000).

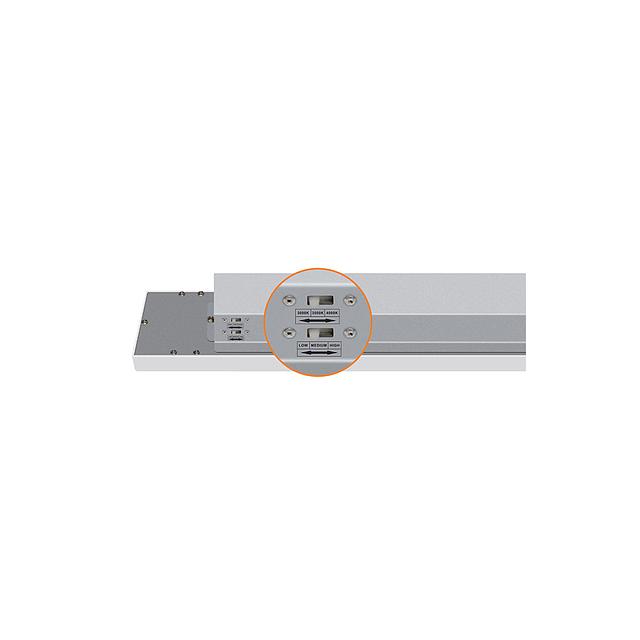

Selectable lumen and CCT technology allows easy field-adjustable capability, luminaire ships with maximum output and 4000K CCT setting. All CCTs are within 3 MacAdam ellipses, 80CRI.
Driver operates at 120-277V input, 0-10V dimmable driver, dim-to-off. Compatible with Bluetooth Mesh system.
CONTROL (OPTIONAL)
CONTROL-XFAC AVI-ON Bluetooth Zone Controller Adapter
MOUNTING

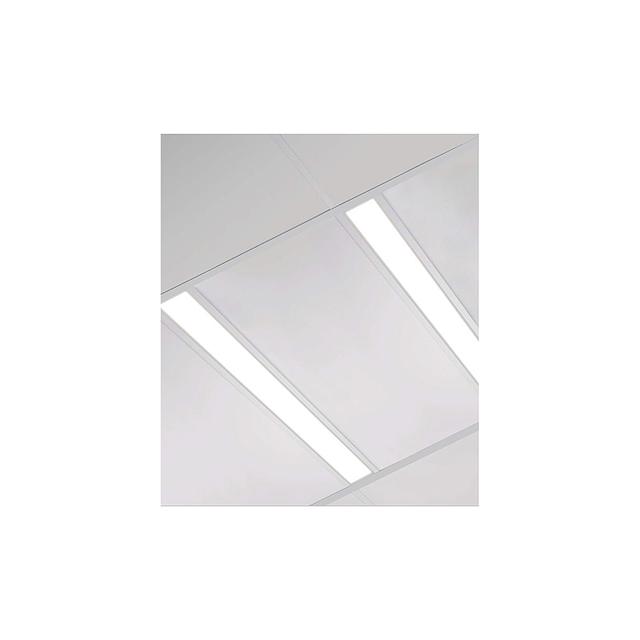

Designed to accommodate lay-in ceilings, Slot T, and T-bar suspension system for 5/8” and 3/8” width.
STANDARD FINISH
90% minimum average reflective white polyester powder coat bonded to phosphate-free, multi-stage pretreated metal.
All parts painted after fabrication to facilitate installation, increase efficiency, and inhibit corrosion.
CERTIFICATION
Meets Buy America Act requirements. IC Rated, suitable for Damp location.
All luminaires are built to UL1598 standards and bear appropriate cULus labels. For Emergency application, equipment with UL924 certified battery packs.
WARRANTY
5-year warranty, see Limited Warranty for additional information.
Low profile extruded aluminum frame, multiple wiring entrances on driver enclosure for easy access. Suitable for installation into T-grid ceilings.
OPTICS
Backlit design provides exceptional lighting distribution. Frosted PMMA lens offers edge to edge illumination without pixilation or bright spots.
ELECTRICAL
Long-life, high-efficacy, micro-power LEDs, illumination for extended service life. Greater than 70% LED lumen maintenance at 100,000 hours (L70>100,000).
Selectable lumen and CCT technology allows easy field-adjustable capability, luminaire ships with maximum output and 4000K CCT setting. All CCTs are within 3 MacAdam ellipses, 80CRI.
Driver operates at 120-277V input, 0-10V dimmable driver, dim-to-off. Compatible with Bluetooth Mesh system.
CONTROL (OPTIONAL)
CONTROL-XFAC AVI-ON Bluetooth Zone Controller Adapter
MOUNTING
Designed to accommodate lay-in ceilings, Slot T, and T-bar suspension system for 5/8” and 3/8” width.
STANDARD FINISH
90% minimum average reflective white polyester powder coat bonded to phosphate-free, multi-stage pretreated metal.
All parts painted after fabrication to facilitate installation, increase efficiency, and inhibit corrosion.
CERTIFICATION
Meets Buy America Act requirements. IC Rated, suitable for Damp location.
All luminaires are built to UL1598 standards and bear appropriate cULus labels. For Emergency application, equipment with UL924 certified battery packs.
WARRANTY
5-year warranty, see Limited Warranty for additional information.
CCT
- 3000K
- 3500K
- 4000K
Dimensions
- L: 26 In.
- L: 50 In.
- W: 7 In.
- W: 9 In.
- H: 6 In.
Lamp Source
- LED
Listings
- UL
- cULus
Materials
- Aluminum
- Metal
Mounting
- Ceiling
- Grid
- Recessed
Ratings & Compliance
- Assembled in America
- Buy American Act (BAA)
- Damp
- FCC
- IC
- Made in America
Special Programs
- Quick Ship
Static LED Color
- White
Voltage
- 120-277 V
- 347 V
Warranty
- 5 yr
Weight
- 9 lbs
- 11 lbs
- 15 lbs
