CSLCSL
New Product

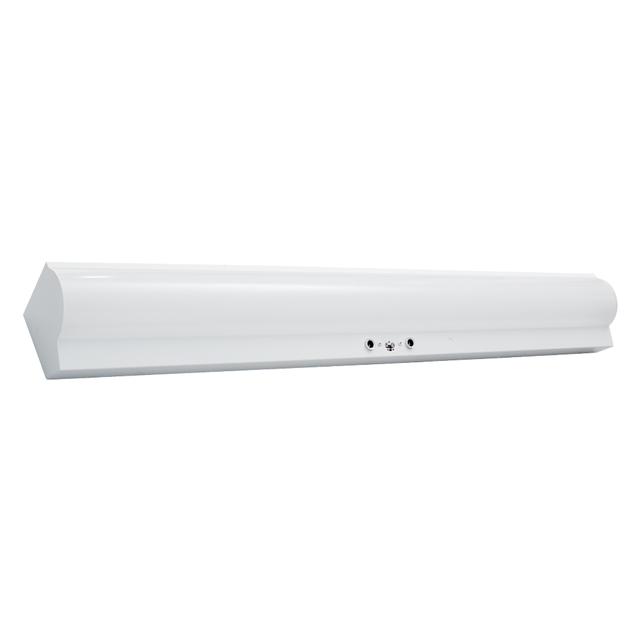

Contractor - Linear Strip
The CSL is a 4-foot compact design channel that is made from cold-rolled 22-gauge steel with a matte white finish. It features 130lm/W LEDs with 80+ CRI and L70 >100,000 hours expected life. The luminaire is designed for direct wiring and surface mount. It is certified to UL1598 standards and comes with a 5-year warranty.
Resources
CONSTRUCTION
4-Foot compact design channel formed from cold-rolled 22-gauge steel with matte White finish.
1/2” knockout made on end cap for sensor or surface conduit mount.
OPTICS
End-to-end U-shaped frosted polycarbonate (PC) lens standard.
ELECTRICAL
Delivered 130lm/W efficacy LEDs offer 80+ color rendering index (CRI), L70 >100,000 hours expected life.
-40°C up to 50°C (-40°F up to 122°F) maximum operating temperature.
Selectable lumen and CCT technology allows easy field-adjustable capability.
Luminaire ships with maximum output and 4000K CCT setting.
Driver operates at 120-277V input, 0-10V dimmable driver, dimmable down to 10%.
MOUNTING
Designed for direct wiring, surface mountable underneath electrical box.
Optional 5” OD beauty ring.
STANDARD FINISH
Semi-gloss White finish, suitable for damp location.
CERTIFICATION
Damp location label standard.
All luminaires are built to UL1598 standards and bear appropriate cULus labels.
For Emergency application, equipment with UL924 certified battery packs.
DLC® Premium (DesignLights Consortium Qualified).
WARRANTY
5 year warranty, see Limited Warranty for additional information.
4-Foot compact design channel formed from cold-rolled 22-gauge steel with matte White finish.
1/2” knockout made on end cap for sensor or surface conduit mount.
OPTICS
End-to-end U-shaped frosted polycarbonate (PC) lens standard.
ELECTRICAL
Delivered 130lm/W efficacy LEDs offer 80+ color rendering index (CRI), L70 >100,000 hours expected life.
-40°C up to 50°C (-40°F up to 122°F) maximum operating temperature.
Selectable lumen and CCT technology allows easy field-adjustable capability.
Luminaire ships with maximum output and 4000K CCT setting.
Driver operates at 120-277V input, 0-10V dimmable driver, dimmable down to 10%.
MOUNTING
Designed for direct wiring, surface mountable underneath electrical box.
Optional 5” OD beauty ring.
STANDARD FINISH
Semi-gloss White finish, suitable for damp location.
CERTIFICATION
Damp location label standard.
All luminaires are built to UL1598 standards and bear appropriate cULus labels.
For Emergency application, equipment with UL924 certified battery packs.
DLC® Premium (DesignLights Consortium Qualified).
WARRANTY
5 year warranty, see Limited Warranty for additional information.
CRI
- 80 CRI
Dimming Protocol
- 0-10 V
Materials
- Steel
Special Programs
- Contractor Select
- Quick Ship
Weight
- 20 lbs
