CSA
CSA.1K.3.jpgCSA

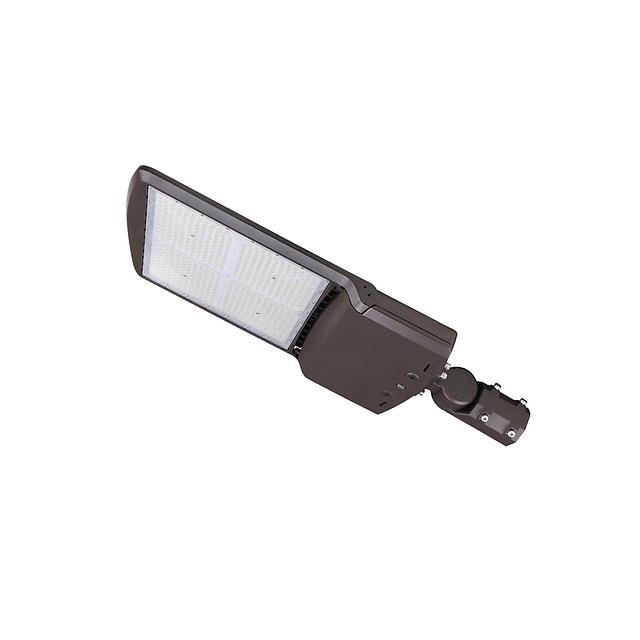

Contractor - Area Light
The CSA features a rugged die-cast aluminum housing with a hinged door and low-profile housing with a thermal heat sink. It features UV-resistant polycarbonate optics and a 70+ CRI Lumileds LED with a long-life of 50,000 hours. It is certified to IP65 and bears appropriate cULus labels. The product is DLC® Premium and comes with a 5-year warranty.
Resources
CONSTRUCTION
Rugged die-cast aluminum housing with hinged, die-cast aluminum door.
Low-profile housing with enhanced thermal heat sink.
OPTICS
UV-resistant polycarbonate optics, available in Type III distributions.
Optics is precisely designed to shape the distribution, maximizing efficiency and application spacing.
ELECTRICAL
70+ CRI Lumileds LED.
-20°C up to 50°C (-4°F up to 122°F) maximum operating temperature.
Long-life 50,000 hr LED at L70 @ 25°C. Driver operates at 120-277V input, 0-10V dimmable driver, down to 10%.
50/60Hz, <75% THD, 0.9 power factor.
MOUNTING
Adjustable square / round pole mount bracket (SRT).
Optional adjustable slipfitter (SF) for 2-3/8” tenon.
Optional yoke mount bracket (YM) for surface mount.
STANDARD FINISH
Dark Bronze powder coating finish.
CERTIFICATION
IP65 Wet location label standard.
Title 24 compliant; see local ordinance for qualification information.
All luminaires are built to UL1598 standards and bear appropriate cULus labels.
DLC® Premium (DesignLights Consortium Qualified).
WARRANTY
5-year warranty, see Limited Warranty for additional information.
Rugged die-cast aluminum housing with hinged, die-cast aluminum door.
Low-profile housing with enhanced thermal heat sink.
OPTICS
UV-resistant polycarbonate optics, available in Type III distributions.
Optics is precisely designed to shape the distribution, maximizing efficiency and application spacing.
ELECTRICAL
70+ CRI Lumileds LED.
-20°C up to 50°C (-4°F up to 122°F) maximum operating temperature.
Long-life 50,000 hr LED at L70 @ 25°C. Driver operates at 120-277V input, 0-10V dimmable driver, down to 10%.
50/60Hz, <75% THD, 0.9 power factor.
MOUNTING
Adjustable square / round pole mount bracket (SRT).
Optional adjustable slipfitter (SF) for 2-3/8” tenon.
Optional yoke mount bracket (YM) for surface mount.
STANDARD FINISH
Dark Bronze powder coating finish.
CERTIFICATION
IP65 Wet location label standard.
Title 24 compliant; see local ordinance for qualification information.
All luminaires are built to UL1598 standards and bear appropriate cULus labels.
DLC® Premium (DesignLights Consortium Qualified).
WARRANTY
5-year warranty, see Limited Warranty for additional information.
CCT

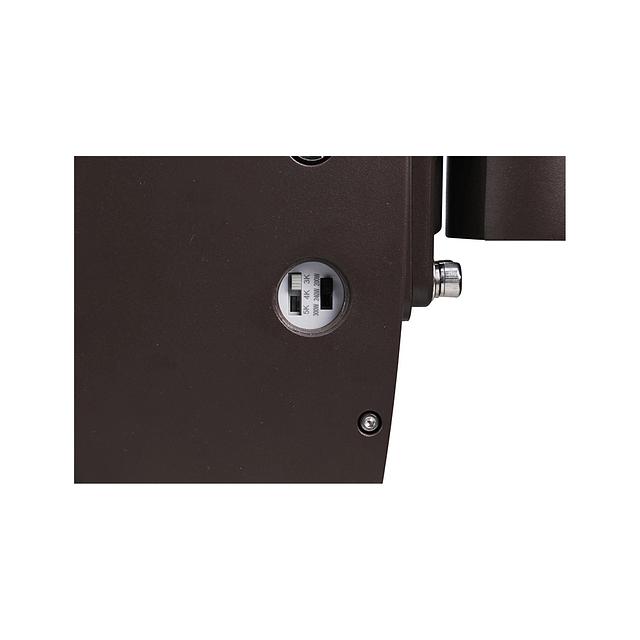

- Field Selectable CCT
- 3000K
- 4000K
- 5000K
CRI
- 70 CRI
Color / Finish
- Dark Bronze
Dimming Protocol
- 0-10 V
Listings
- UL
- cULus
Mounting
- Pole
- Slip Fitter
- Trunnion
Ratings & Compliance
- DLC
- DLC Premium
- FCC
- IP65
- Title 24
Special Programs
- Quick Ship
Voltage
- 120-277 V
Warranty
- 5 yr
Weight
- 11 lbs
- 15 lbs
- 27 lbs
- 28 lbs
