CPQ

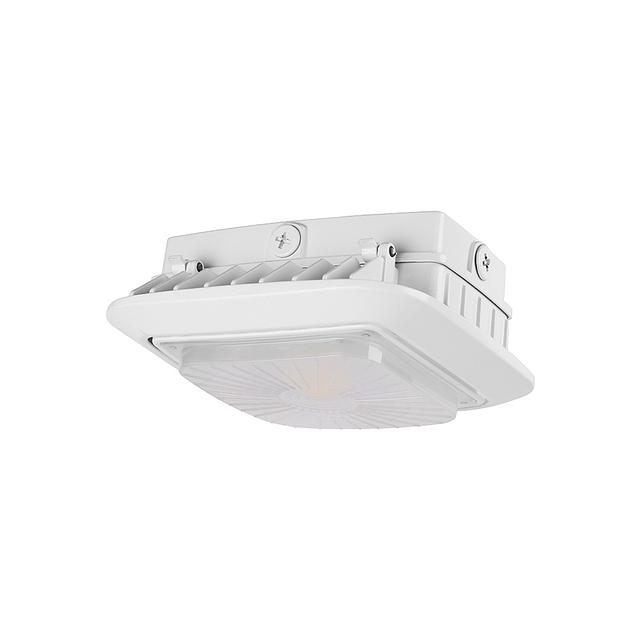

CPQ.3-1K.jpgCPQ
Garage Light
Introducing CPQ, a rugged and reliable lighting solution for construction projects. Its die-cast aluminum housing withstands tough conditions, while the polycarbonate lens and 4000K-5000K LEDs provide efficient illumination. The luminaire is easy to install and is available in semi-gloss White and Dark Bronze finishes. Certified for Wet Locations and DLC Premium (DesignLights Consortium Qualified), CPQ is backed by a 5-year warranty.
Resources
CONSTRUCTION
Rugged die-cast aluminum housing with corrosion resistant powder coat finish both protects and provides architectural appearance.
Heat dissipating fins provide superior thermal performance extending the life of the luminaire. Feed-through wiring ready, 1/2” NPT threading with water tight cap.
OPTICS
Square dropped lens constructed of polycarbonate material with refractive features built in to maximize area coverage.
Light engine available in 4000K, 5000K CCT (80+ CRI). Type V Distribution, lightly diffused lens for reduced LED pixilation and glare.
Drop lens provides light above the 90 degree plane for some ambient uplighting.
ELECTRICAL
80+ CRI Lumileds LED. -40°C up to 40°C (-40°F up to 104°F) maximum operating temperature 100,000 hr at L70 @ 25°C.
Driver operates at 120-277V input, 50/60Hz, 1–10V dimming driver standard. <20% THD, 0.9 power factor.
Optional 10kV surge protector. Optional button photocell control. Optional Emergency Backup Battery.
SENSORS (OPTIONAL)
SENSOR-819-O1 End mount on/off motion sensor with lowbay lens.
SENSOR-819-D1 End mount on/off/dimming and photocell sensor with lowbay lens.
SENSOR-BLE-819 End mount ALS CONTROL bluetooth on/off motion sensor lowbay lens.
SENSOR-PH-PB-U Integral button style photocell.
CONTROL-AVI-LVFA AVI-ON Bluetooth Mesh Controller.
MOUNTING
Integrated universal mounting marked on housing, allows simple installation. Mounts directly to 4” round, octagonal, and square junction boxes.
Hinged design allows luminaire to be hung while wiring. (Suitable for surface mounted j-box, rigid pipe or free swinging pendant (supplied by others).
3/4” conduit entry on top for pendant mount. 1/2” conduit entry on four sides.
STANDARD FINISH
Corrosion resistant Dark Bronze and Semi-Gloss White powder coat.
CUSTOM FINISH
Corrosion resistant Black, Graphite Metallic, Gray, Silver, or custom RAL#.
CERTIFICATION
IP66 Wet location label standard. Meets Buy America Act requirements.
All luminaires are built to UL1598 standards and bear appropriate cULus labels. For Emergency application, equipment with UL924 certified battery packs.
DLC® Premium (DesignLights Consortium Qualified)
WARRANTY
5-year warranty, see Limited Warranty for additional information.
Rugged die-cast aluminum housing with corrosion resistant powder coat finish both protects and provides architectural appearance.
Heat dissipating fins provide superior thermal performance extending the life of the luminaire. Feed-through wiring ready, 1/2” NPT threading with water tight cap.
OPTICS
Square dropped lens constructed of polycarbonate material with refractive features built in to maximize area coverage.
Light engine available in 4000K, 5000K CCT (80+ CRI). Type V Distribution, lightly diffused lens for reduced LED pixilation and glare.
Drop lens provides light above the 90 degree plane for some ambient uplighting.
ELECTRICAL
80+ CRI Lumileds LED. -40°C up to 40°C (-40°F up to 104°F) maximum operating temperature 100,000 hr at L70 @ 25°C.
Driver operates at 120-277V input, 50/60Hz, 1–10V dimming driver standard. <20% THD, 0.9 power factor.
Optional 10kV surge protector. Optional button photocell control. Optional Emergency Backup Battery.
SENSORS (OPTIONAL)
SENSOR-819-O1 End mount on/off motion sensor with lowbay lens.
SENSOR-819-D1 End mount on/off/dimming and photocell sensor with lowbay lens.
SENSOR-BLE-819 End mount ALS CONTROL bluetooth on/off motion sensor lowbay lens.
SENSOR-PH-PB-U Integral button style photocell.
CONTROL-AVI-LVFA AVI-ON Bluetooth Mesh Controller.
MOUNTING
Integrated universal mounting marked on housing, allows simple installation. Mounts directly to 4” round, octagonal, and square junction boxes.
Hinged design allows luminaire to be hung while wiring. (Suitable for surface mounted j-box, rigid pipe or free swinging pendant (supplied by others).
3/4” conduit entry on top for pendant mount. 1/2” conduit entry on four sides.
STANDARD FINISH
Corrosion resistant Dark Bronze and Semi-Gloss White powder coat.
CUSTOM FINISH
Corrosion resistant Black, Graphite Metallic, Gray, Silver, or custom RAL#.
CERTIFICATION
IP66 Wet location label standard. Meets Buy America Act requirements.
All luminaires are built to UL1598 standards and bear appropriate cULus labels. For Emergency application, equipment with UL924 certified battery packs.
DLC® Premium (DesignLights Consortium Qualified)
WARRANTY
5-year warranty, see Limited Warranty for additional information.
CCT
- 4000K
- 5000K
CRI
- 80 CRI
Controls Options
- Daylight Sensor
- Photocell
Dimensions
- L: 9 In.
- L: 11 In.
- W: 9 In.
- W: 11 In.
- H: 5 In.
Distribution
- Type V
Efficacy
- 130 lm/w
Integrated Brands
- Avi-on
Lamp Life
- 100000 hrs
Lamp Source
- LED
Listings
- UL
- cULus
Lumens
- 3900 Lm
- 6500 Lm
- 9100 Lm
- 13000 Lm
Materials
- Die-Cast Aluminum
- Metal
- Polycarbonate
Ratings & Compliance
- Assembled in America
- Buy American Act (BAA)
- DLC
- DLC Premium
- Damp
- FCC
- IC
- IP20
- IP65
- Made in America
- Wet
Special Programs
- Quick Ship
Static LED Color
- Blue
- Red
- White
Voltage
- 110-277 V
- 12 V
- 120-277 V
- 24 V
- 277 V
- 347 V
- 480 V
Warranty
- 5 yr
Watts
- 30 w
- 50 w
- 70 w
- 100 w
Weight
- 5 lbs
- 8 lbs
