BL2A
BL2A.1K.3.jpgBL2A
New Product

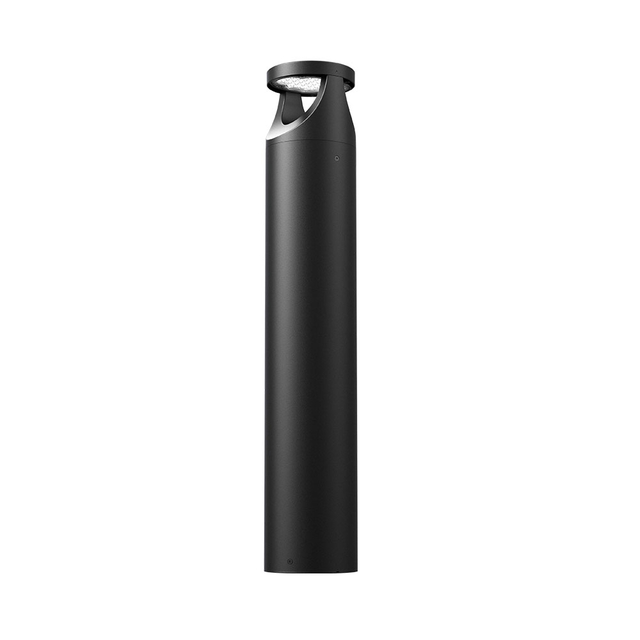

Architectural Bollard
The BL2A is a low profile extruded aluminum shaft with thick side walls provides durability and energy efficiency. It features a sleek design with a glare-free uniform illumination and a glare-free rated light. The luminaire has a 70+ CRI and an expected life of over 50,000 hours. It has a CCT selectable light engine and a built-in photocell. The luminaire meets Buy America Act requirements and is certified to UL1598 standards.Â
Resources
CONSTRUCTION
Low profile extruded aluminum shaft with thick side walls for excellent durability.
Features a sleek, modern design and carefully engineered to provide long-lasting, energy-efficient lighting.
Die-cast aluminum mounting base allows for easy leveling even in sloped locations and a full 360-degree rotation for precise alignment during installation.
OPTICS
Frosted Polycarbonate lens offer glare-free uniform illumination.
Efficacy higher than 140 lm/W.
ELECTRICAL
70+ CRI. -40°C up to 40°C (-40°F up to 113°F) maximum operating temperature.
Designed for an expected life >50,000 hours.
CCT selectable light engine 3000K ~ 5000K. >.9 power factor, 50/60Hz, <20% THD.
Driver operates at 120-277V, 347V input, 0-10V dimmable driver, down to 10%.
Optional 10kV surge protection. Built-in Photocell.
STANDARD FINISH
Corrosion resistant Dark Bronze coating finish.
CERTIFICATION
Meets Buy America Act requirements. IP65 Wet location label listed.
All luminaires are built to UL1598 standards and bear appropriate cULus labels.
For Emergency application, equipment with UL924 certified battery packs.
DLC® Premium (DesignLights Consortium Qualified)
WARRANTY
5-year warranty, see Limited Warranty for additional information.
Low profile extruded aluminum shaft with thick side walls for excellent durability.
Features a sleek, modern design and carefully engineered to provide long-lasting, energy-efficient lighting.
Die-cast aluminum mounting base allows for easy leveling even in sloped locations and a full 360-degree rotation for precise alignment during installation.
OPTICS
Frosted Polycarbonate lens offer glare-free uniform illumination.
Efficacy higher than 140 lm/W.
ELECTRICAL
70+ CRI. -40°C up to 40°C (-40°F up to 113°F) maximum operating temperature.
Designed for an expected life >50,000 hours.
CCT selectable light engine 3000K ~ 5000K. >.9 power factor, 50/60Hz, <20% THD.
Driver operates at 120-277V, 347V input, 0-10V dimmable driver, down to 10%.
Optional 10kV surge protection. Built-in Photocell.
STANDARD FINISH
Corrosion resistant Dark Bronze coating finish.
CERTIFICATION
Meets Buy America Act requirements. IP65 Wet location label listed.
All luminaires are built to UL1598 standards and bear appropriate cULus labels.
For Emergency application, equipment with UL924 certified battery packs.
DLC® Premium (DesignLights Consortium Qualified)
WARRANTY
5-year warranty, see Limited Warranty for additional information.
CCT
- Field Selectable CCT
- 3000K
- 4000K
- 5000K
CRI
- 70 CRI
Color / Finish
- Dark Bronze
Dimming Protocol
- 0-10 V
Efficacy
- 140 lm/w
Emergency Options
- Integral EM Battery
Lamp Life
- 50000 hrs
Listings
- UL
- cULus
Lumens
- 1960 Lm
- 2660 Lm
- 3360 Lm
Materials
- Aluminum
- Die-Cast Aluminum
Ratings & Compliance
- Assembled in America
- Buy American Act (BAA)
- DLC Premium
- FCC
- Made in America
Voltage
- 120-347 V
Warranty
- 5 yr
Watts
- 14 w
- 19 w
- 24 w
Weight
- 13 lbs
