FD 15-120

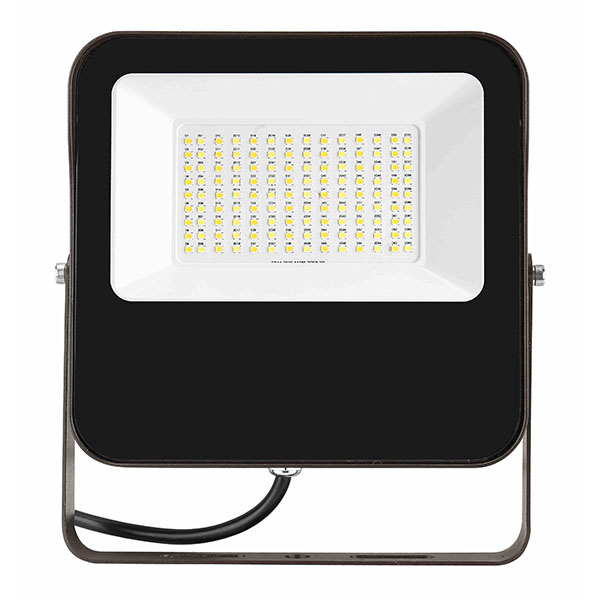

ALS_Images_Resized_0034_FD-15-120 YM.jpgFD 15-120
Compact Flood Light
The FD 15-120 is a high-performance lighting solution with exceptional durability. Its die-cast aluminum housing, internal venting fins, and tempered glass lens ensure optimal heat dissipation, water drainage, and protection against water and dust. The integral reflector provides NEMA 7H x 7V distribution, and selectable CCT options offer excellent color accuracy. The luminaire features a long-life 56,000hr LED, a driver compatible with a wide range of voltages, and a corrosion-resistant Dark Bronze powder coating finish. It meets UL1598 standards and is IP66 rated for wet locations.
Resources
CONSTRUCTION
Rugged die-cast aluminum housing, internal venting fins create optimal heat dissipation and allow water to drain from the face of the luminaire.
Body designed with visor trim provide optimal cutoff, used as general flood lighting or up lighting.
OPTICS
Impact resistant temper glass lens gasketed and sealed with body, maximizing protection of LED against water and dust. Integral reflector offers NEMA 7H x 7V distribution.
ELECTRICAL
80+ CRI Lumileds LED. Selectable CCT 3000 / 4000 / 5000K. -40°C up to 55°C (-40°F up to 131°F) maximum operating temperature.
Long-life 56,000hr LED at L70. Driver operates at 120-277V input, 50/60Hz. <20% THD, 0.9 power factor.
CONTROL (OPTIONAL)
CONTROL-XFAC AVI-ON Bluetooth Zone Controller Adapter
MOUNTING
15W / 27W / 40W / 65W models
Standard with 1/2” x 14 NPS threaded adjustable knuckle mount
Optional Yoke mounting available (sold separately)
90W / 120W models
Standard with 2-3/8” slipfitter mount
Optional Trunnion mount (sold separately)
STANDARD FINISH
Corrosion resistant Dark Bronze powder coating finish.
CERTIFICATION:
IP66 Wet location label standard. Meets Buy America Act requirements. IDA compliant: with 3000K color temperature selection.
All luminaires are built to UL1598 standards and bear appropriate cULus labels. DLC® Premium (DesignLights Consortium Qualified)
WARRANTY
5-year warranty, see Limited Warranty for additional information.
Rugged die-cast aluminum housing, internal venting fins create optimal heat dissipation and allow water to drain from the face of the luminaire.
Body designed with visor trim provide optimal cutoff, used as general flood lighting or up lighting.
OPTICS
Impact resistant temper glass lens gasketed and sealed with body, maximizing protection of LED against water and dust. Integral reflector offers NEMA 7H x 7V distribution.
ELECTRICAL
80+ CRI Lumileds LED. Selectable CCT 3000 / 4000 / 5000K. -40°C up to 55°C (-40°F up to 131°F) maximum operating temperature.
Long-life 56,000hr LED at L70. Driver operates at 120-277V input, 50/60Hz. <20% THD, 0.9 power factor.
CONTROL (OPTIONAL)
CONTROL-XFAC AVI-ON Bluetooth Zone Controller Adapter
MOUNTING
15W / 27W / 40W / 65W models
Standard with 1/2” x 14 NPS threaded adjustable knuckle mount
Optional Yoke mounting available (sold separately)
90W / 120W models
Standard with 2-3/8” slipfitter mount
Optional Trunnion mount (sold separately)
STANDARD FINISH
Corrosion resistant Dark Bronze powder coating finish.
CERTIFICATION:
IP66 Wet location label standard. Meets Buy America Act requirements. IDA compliant: with 3000K color temperature selection.
All luminaires are built to UL1598 standards and bear appropriate cULus labels. DLC® Premium (DesignLights Consortium Qualified)
WARRANTY
5-year warranty, see Limited Warranty for additional information.
CCT
- Field Selectable CCT
- 3000K
- 4000K
- 5000K
CRI
- 80 CRI
Color / Finish
- Dark Bronze
Controls Options
- Photocell
Dimensions
- L: 9 In.
- L: 11 In.
- L: 17 In.
- L: 20 In.
- W: 8 In.
- W: 9 In.
- W: 11 In.
- H: 3 In.
- H: 4 In.
Distribution
- Flood
Lamp Life
- 56000 hrs
Lamp Source
- LED
Listings
- UL
- cULus
Lumens
- 2100 Lm
- 3600 Lm
- 5800 Lm
- 9400 Lm
- 12500 Lm
- 13500 Lm
- 18000 Lm
Materials
- Die-Cast Aluminum
- Glass
Mounting
- Knuckle
- Trunnion
Ratings & Compliance
- Assembled in America
- Buy American Act (BAA)
- DLC
- DLC Premium
- FCC
- IC
- IP66
- Made in America
- Wet
Special Programs
- Quick Ship
Static LED Color
- Blue
Voltage
- 100-277 V
- 120-277 V
Warranty
- 5 yr
Watts
- 15 w
- 27 w
- 40 w
- 65 w
- 85 w
- 90 w
- 120 w
Weight
- 3 lbs
- 6 lbs
- 8 lbs
- 10 lbs
